Product specification

ML-115

50x50 Plain Bullet

4 specifications Technical diagram OEM Ready

Request OEM Quote →

Product overview

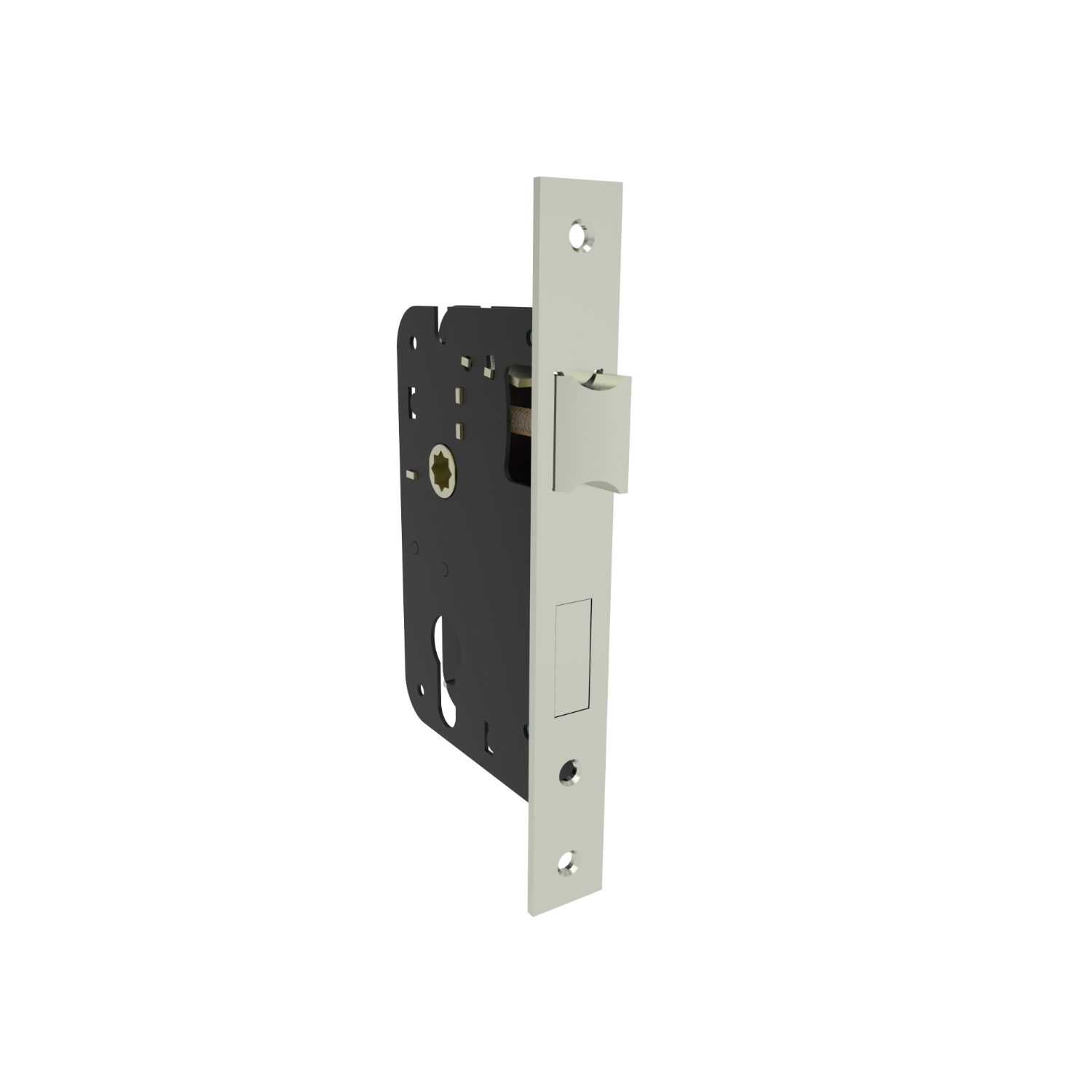

Mortise Lock 50x50 Plain Bullet 176mm

View product material, finish, specification, line diagram and technical details.

176mm Plain Bullet 50x50 Mortise Lock

ML-115 Mortise Lock Body & Cases

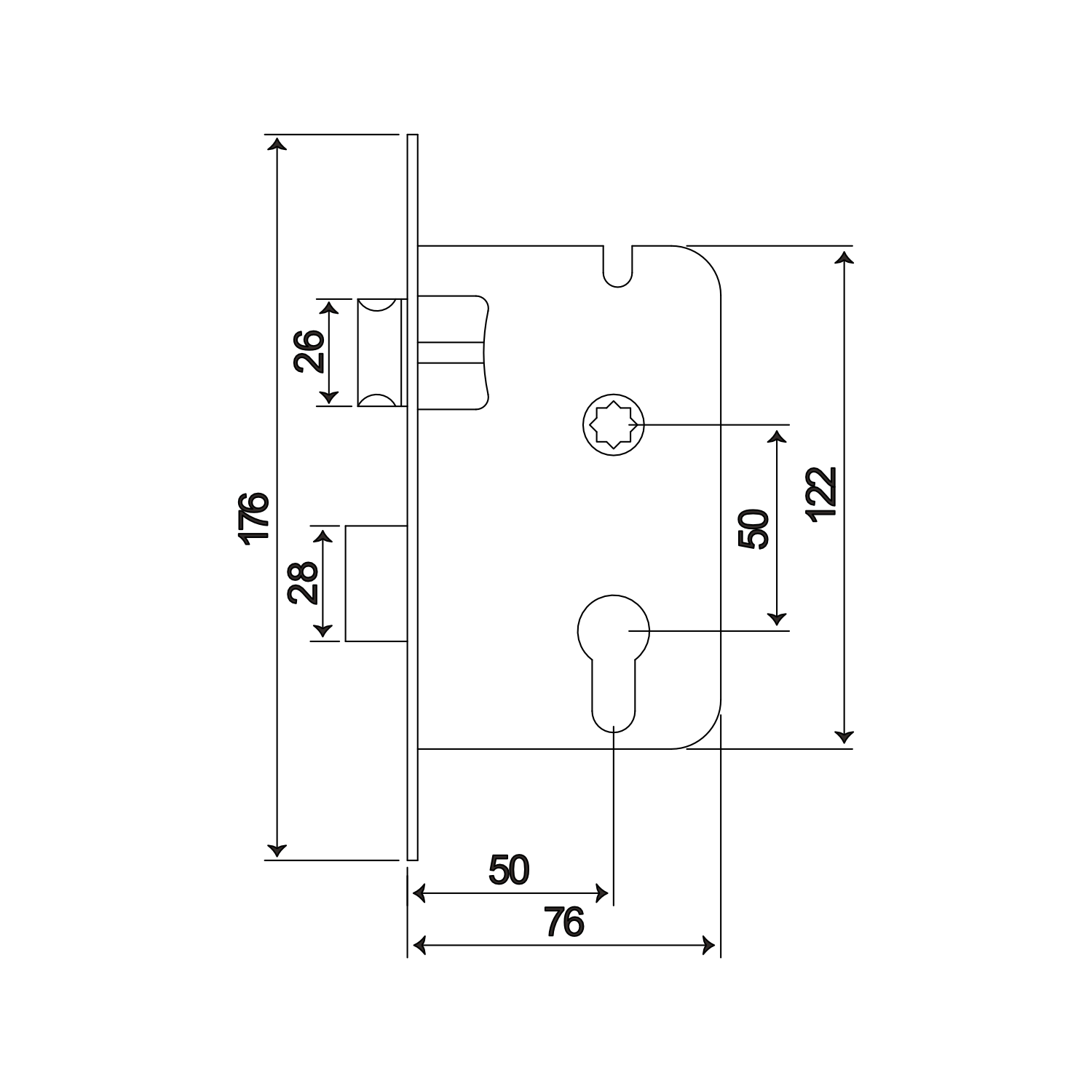

Technical diagrams

Line diagram, drawing and reference visuals

Technical specification

Specification table

Material

Front Plate	SS-202 \| SS-304
Striker Plate	SS-202 \| SS-304
Deadbolt	Brass \| ZAMAK-3
Latch	Brass \| ZAMAK-3
Follower	Brass \| Mild Steel \| ZAMAK-3

Production Capacity

+100000 Cylcle tested
Acetone Test Passed 1000+
SST Passed
Pencile Hardness Passed 4H+

Reference Standard

Follow BS EN 12209:2003

Note : Mortise lock are manufactured in compliance with BSEN 12209:2003 Standard

Feature

• Suitable for 25-40 mm Thick Door
• Suitable for Wooden Door
• Latch Operated by Handle or Cylinder
• 50mm Center Back-set in 50mm
• Reversible Latch in Solid Brass | ZInc
• Double throw Deadbolt in Solid Brass | Zinc With 20mm Projection
• Suitable for Sprung Lever Handle

Application

Residential Entry Doors: Provides strong main-door security using integrated deadbolts and levers.

Finish

SS | AB | Black | RG | Gold | PVD Finishes

Branding

As Per Customer Standard
