Application
Residential Entry Doors: Provides strong main-door security using integrated deadbolts and levers.
Product specification
ML-114 RL
60x85 4 Bullet Roller Latch
4 specifications Technical diagram OEM Ready
Request OEM Quote →
Product overview
Mortise Lock With Roller Latch 60x85 4 Bullet
View product material, finish, specification, line diagram and technical details.

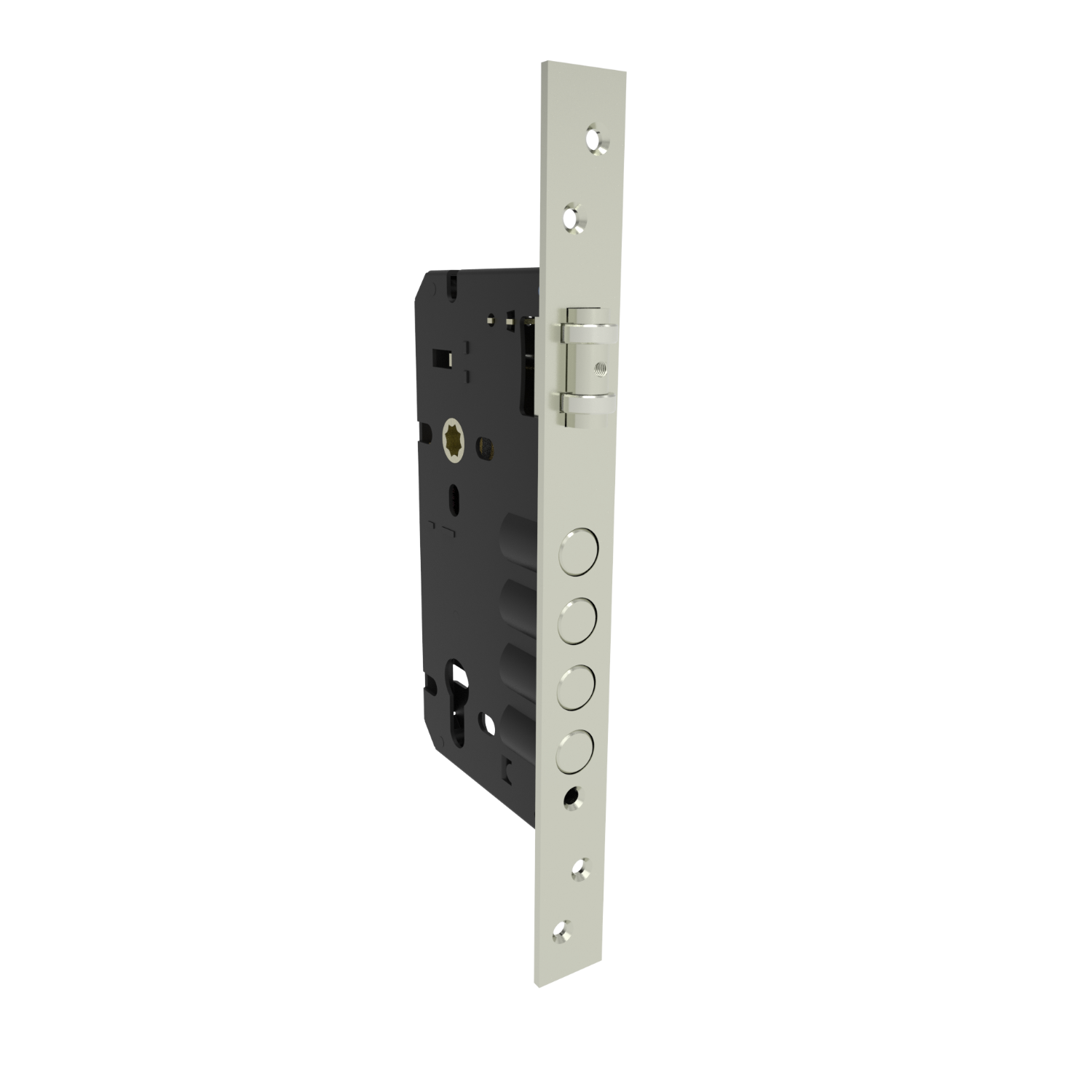

270mm 4 Bullet 60x85 Mortise Lock with Roller Latch
ML-114 RL
Mortise Lock Body & Cases

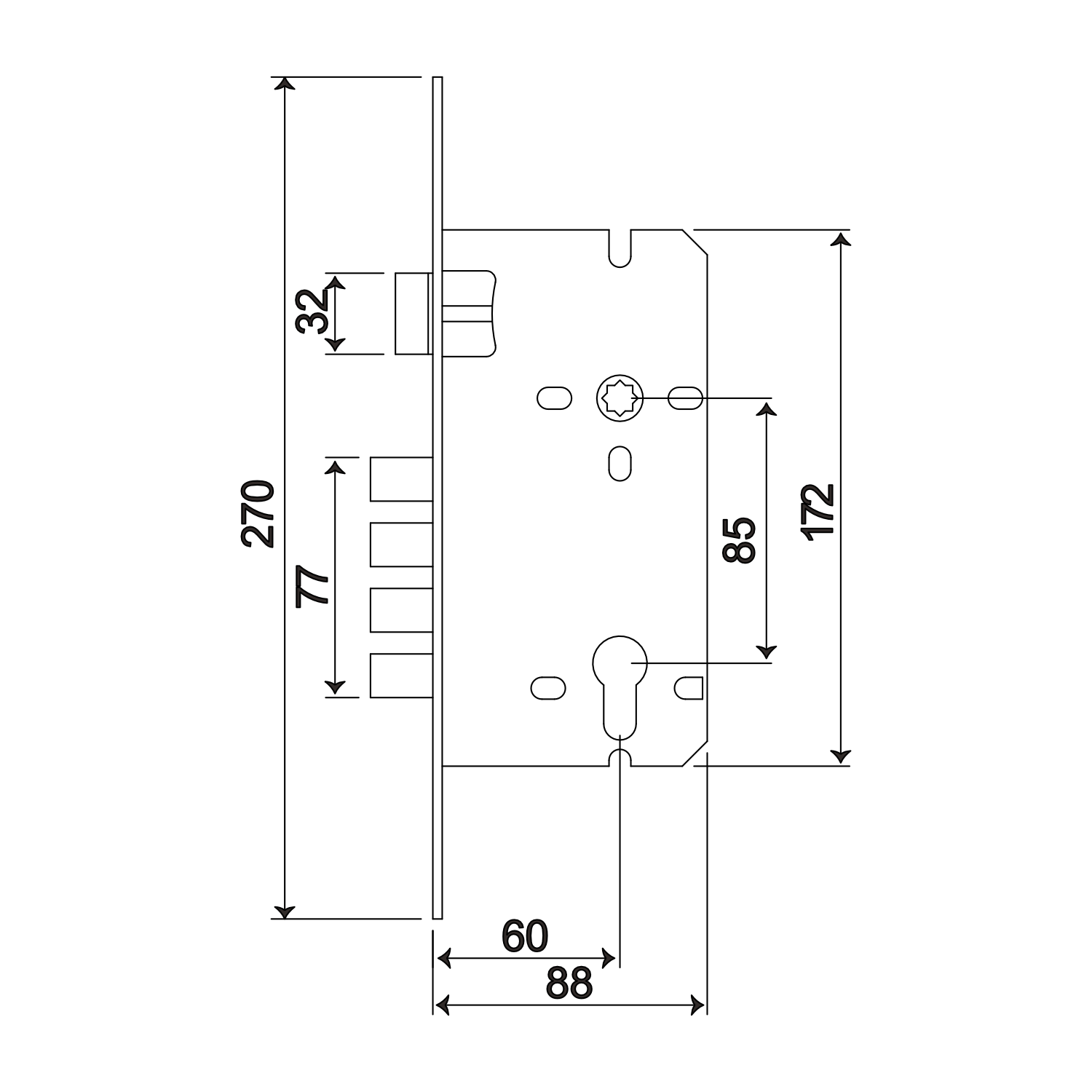

Technical diagrams
Line diagram, drawing and reference visuals
Technical specification
Specification table
Material
Front Plate | SS-202 |
SS-304 |
Striker Plate | SS-202 |
SS-304 |
Deadbolt | SS-304 |
Latch | ZAMAK-3 & SS-304 |
Follower | Brass | Mild
Steel | ZAMAK-3 |
Production Capacity
- +100000 Cylcle tested
- Acetone Test Passed 1000+
- SST Passed
- Pencile Hardness Passed 4H+
Reference Standard
Follow BS EN 12209:2003
2 | B | 7 | 0 | 0 | C | 3 | B | C | 2 | 0 |
Note : Mortise lock are manufactured in compliance with BSEN 12209:2003 Standard
Feature
• Suitable for 35-50 mm Thick Door
• Suitable for Wooden and Metal Door
• Latch Operated by Handle or Cylinder
• 85mm Center Back-set in 60mm
• Roller Latch in Solid SS-304 Material 4 Bullet
• Double throw Deadbolt in Solid 4bullet SS-304 with 20mm Projection
• Suitable for Sprung and Un Sprung Lever Handle
• Suitable for Wooden and Metal Door
• Latch Operated by Handle or Cylinder
• 85mm Center Back-set in 60mm
• Roller Latch in Solid SS-304 Material 4 Bullet
• Double throw Deadbolt in Solid 4bullet SS-304 with 20mm Projection
• Suitable for Sprung and Un Sprung Lever Handle
Finish
SS | AB | Black | RG | Gold | PVD Finishes
Branding
As Per Customer Standard
