Product specification

ML-114

60x85 4 Bullet

4 specifications Technical diagram OEM Ready

Request OEM Quote →

Product overview

Mortise Lock 60x85 4 Bullet

View product material, finish, specification, line diagram and technical details.

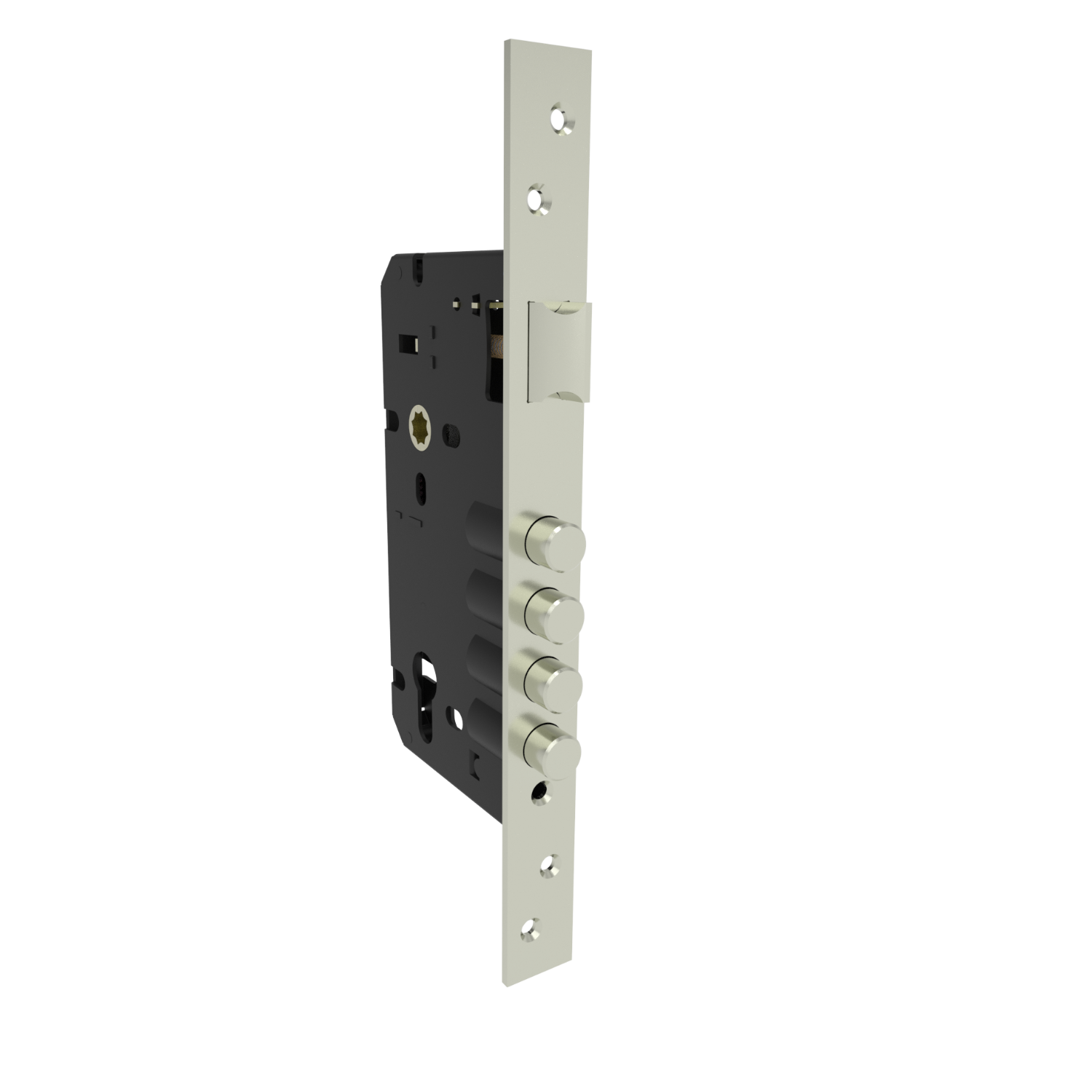

270mm 4 Bullet 60x85 Mortise Lock

ML-114 Mortise Lock Body & Cases

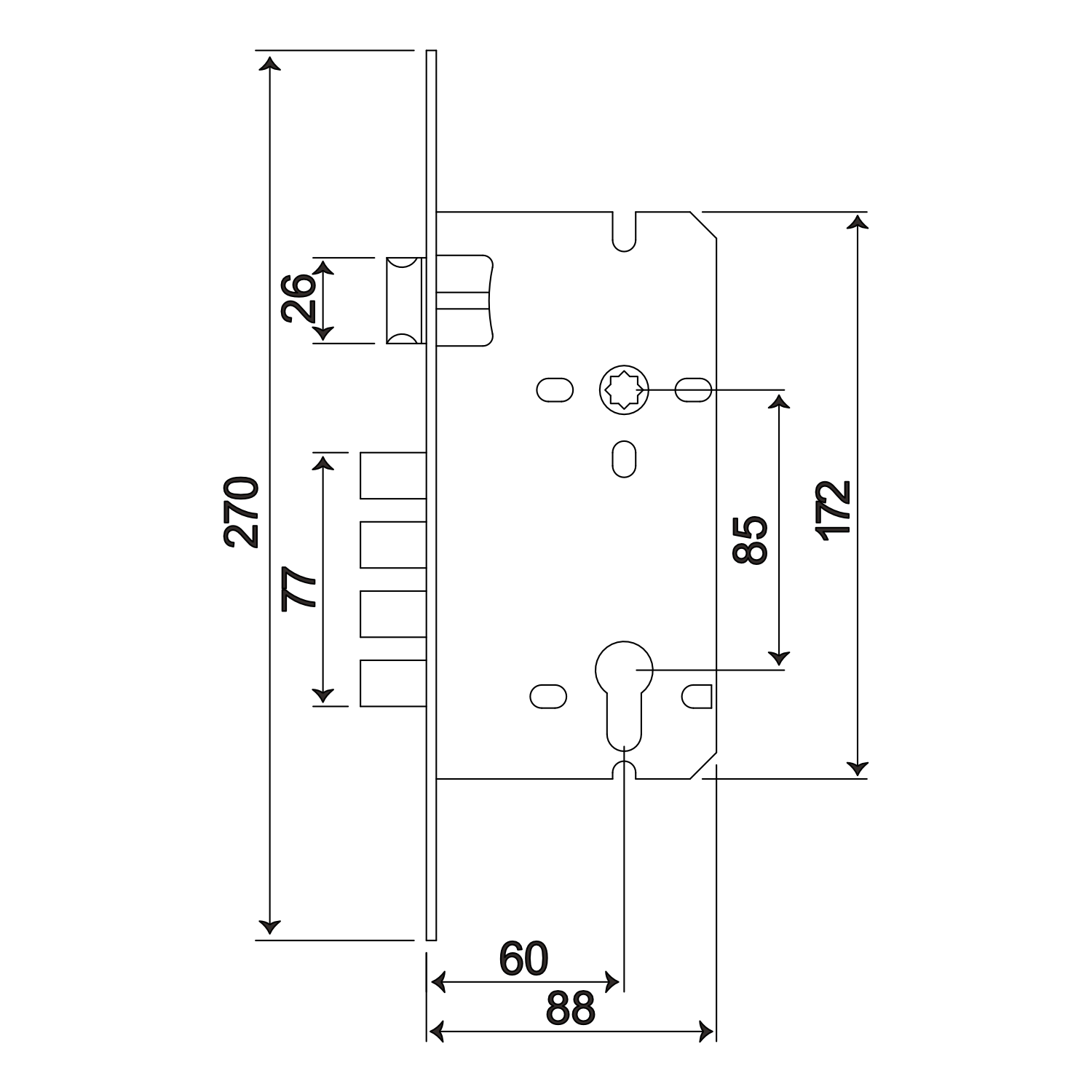

Technical diagrams

Line diagram, drawing and reference visuals

Technical specification

Specification table

Material

Front Plate	SS-202 \| SS-304
Striker Plate	SS-202 \| SS-304
Deadbolt	SS-304
Latch	SS-304
Follower	Brass \| Mild Steel \| ZAMAK-3

Production Capacity

+100000 Cylcle tested
Acetone Test Passed 1000+
SST Passed
Pencile Hardness Passed 4H+

Reference Standard

Follow BS EN 12209:2003

Note : Mortise lock are manufactured in compliance with BSEN 12209:2003 Standard

Feature

• Suitable for 35-50 mm Thick Door
• Suitable for Wooden and Metal Door
• Latch Operated by Handle or Cylinder
• 85mm Center Back-set in 60mm
• Reversible Latch in Solid Brass
• Double throw Deadbolt in Solid 4bullet SS-304 with 20mm Projection
• Suitable for Sprung and Un Sprung Lever Handle

Application

Residential Entry Doors: Provides strong main-door security using integrated deadbolts and levers.

Finish

SS | AB | Black | RG | Gold | PVD Finishes

Branding

As Per Customer Standard
